Remund Pertronix

Electronic Ignition Instructions

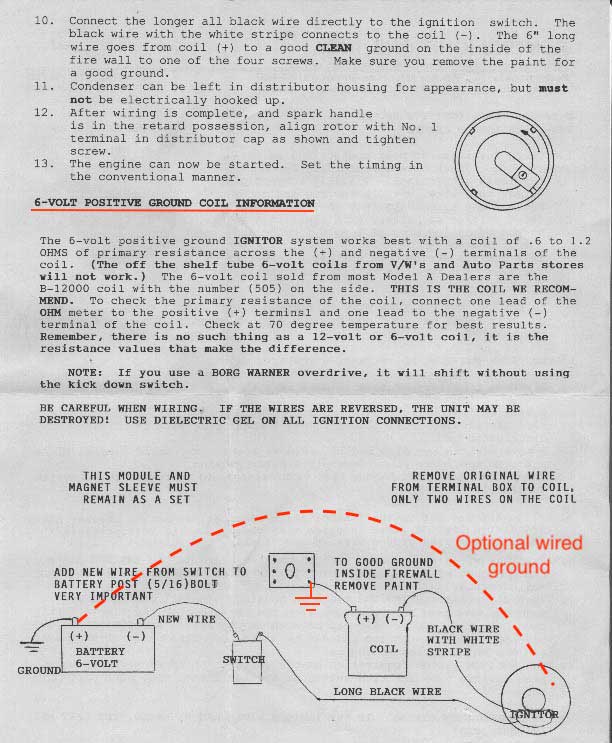

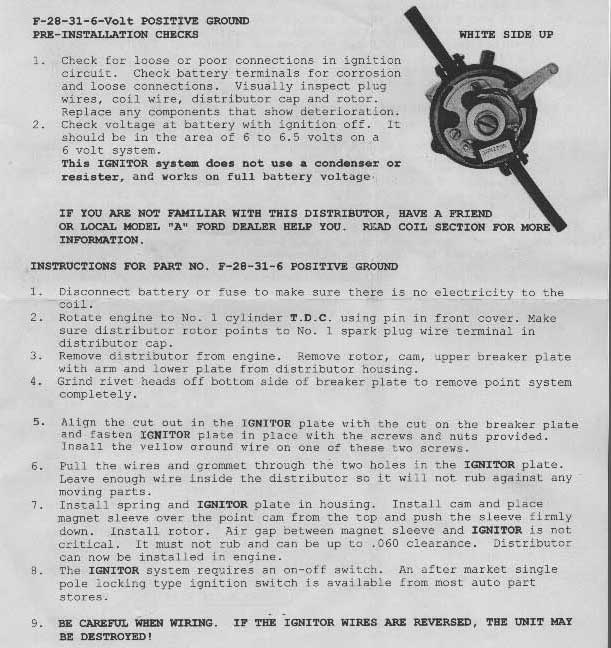

The following images are the original installation instructions for the Pertronix Ignitor electronic ignition system for the Model A Ford, as developed and sold by Mickey Remund.

The Pertronix system uses a Hall effect transducer inside the distributor to replace the conventional points and condenser.

These instructions are specifically for 6 volt positive ground electrical systems.
