Model A & B

6 Volt LED Center Brake Light

fordgarage.com

Model A's and B's are not known for effective brake lights, and even optional dual rear lamps are sometimes insufficient!

fordgarage.com

This is the best 6 volt LED center brake light I have found. It is actually made for use on heavy duty truck trailers which often suffer from bad grounds and low voltage conditions. It is a completely sealed and regulated LED device that operates on as little as 3 volts, and at full luminescence from 6 volt to 16.5 volts.

It is Federal-Mogul Signal-Stat part number 62000. It is quite expensive at a list price of $81.28, but is very nice and very bright. There are many other LED brake lights around, but they are designed to operate at 12 volts, or at much reduced output at 6 volts. This one is specifically designed for full power at 6 volts.

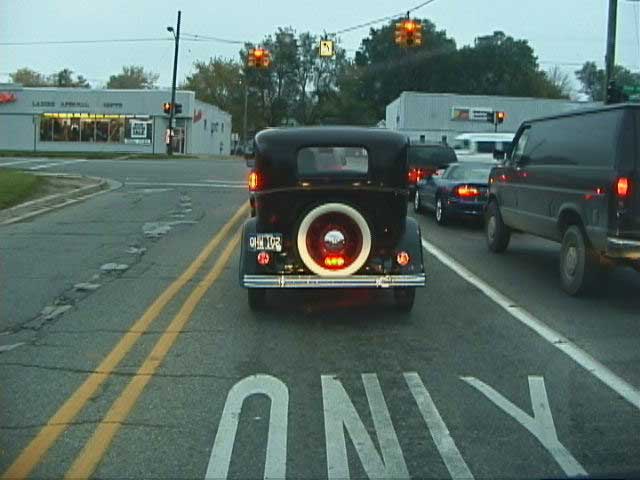

It is an oval shape, 2-1/4 by 6-7/16 inches horizontally oriented. I made a bracket and mounted it in front of the spokes on my rear spare, so it is hidden from view and not evident except when I step on the brakes.

Please see this link about original right hand side rear 'tea cup' lamp brackets on Ford Garage.

More related information on Ford Garage:

For more Model A & B related information, use the Site Search box at the top or bottom of this page.

Vince Falter
August 2000
