Model A & B
A Model A Ford Model A
Wooden Storage Crates

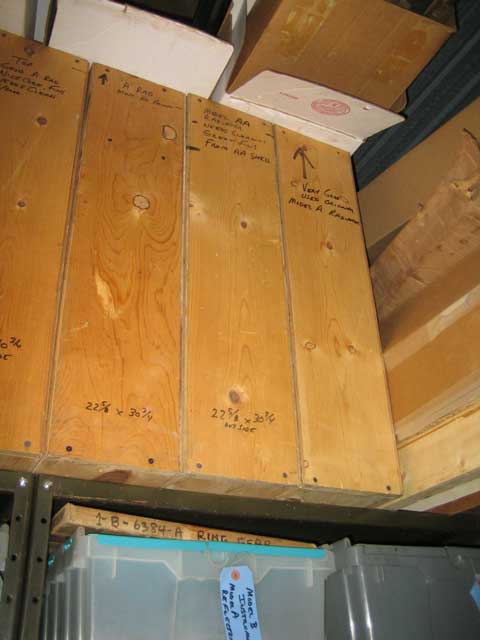

One of the useful ideas for part storage is to make simple crates for parts which are awkward or easily damaged.

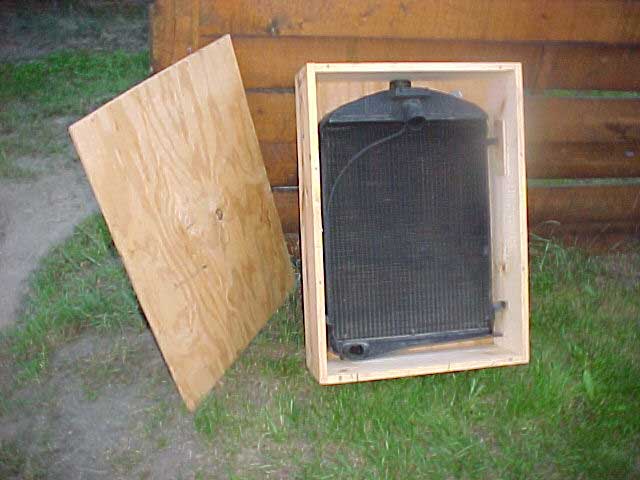

Nice original radiators are hard to find and are worth taking the time to protect. The same is true for radiator shells!
Shown here is a table of overall outside dimensions for various crates.
Front and back covers are made from 1/4 inch Luan, and the sides are made from nominal 1 x 8 or 1 x 10 boards (actual boards are 7-1/4 or 9-1/2 inches).
I use deck type screws to assemble the crate sides and the front and back covers.
| Crate Outside Dimensions |
Cover Width | Cover Height | Board Width |
|---|---|---|---|
| Model A & B Radiators |
22-5/8 | 30-3/4 | 7-1/4 |
| Model 40 Radiator |
22-1/8 | 31-1/4 | 9-1/2 |
| Model A Radiator Shell |
|||
| Model B Radiator Shell |
23-1/4 | 34 | 7-1/4 |
More related information on Ford Garage:
- For more Model A & B related information, use the Site Search box at the top or bottom of this page.
- Model 40 & Model 46 NOS 4-Cylinder Radiator
September 2001
