Fuel Pump Flexible Connection

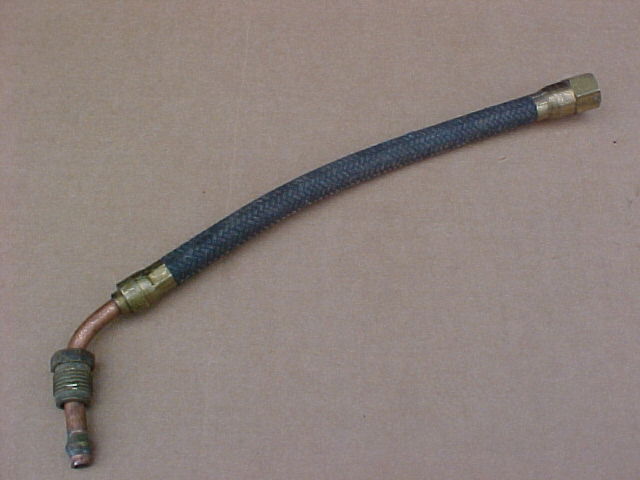

This is an NOS B-9288 fuel pump flexible connection assembly. This hose assembly is attached to the end of the chassis fuel pipe which runs inside the right hand frame rail from the rear tank and ends at the engine. The flexible line then attaches to the engine mounted fuel pump on the lower right hand side.

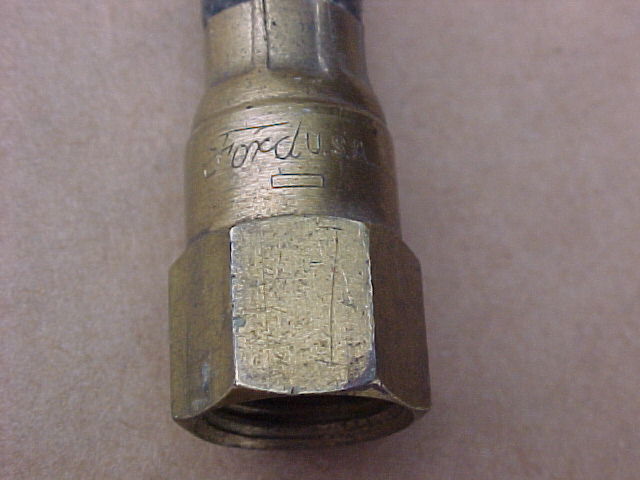

Note the Ford USA script on the fuel pipe fitting!
