Electrical System & Wiring Diagram
Click images to enlarge!

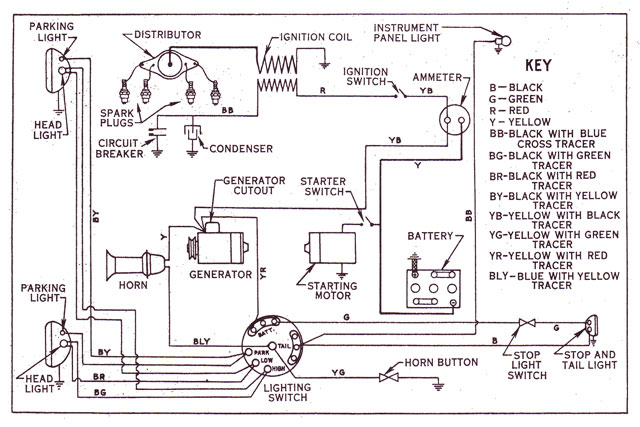

Early 1932 Model B Ford wiring diagram, before the fuse was added to the lighting circuit. The lighting circuit was supplied directly from the generator cutout output.

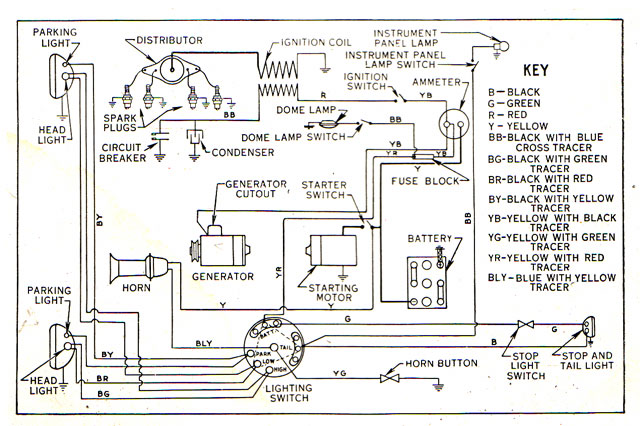

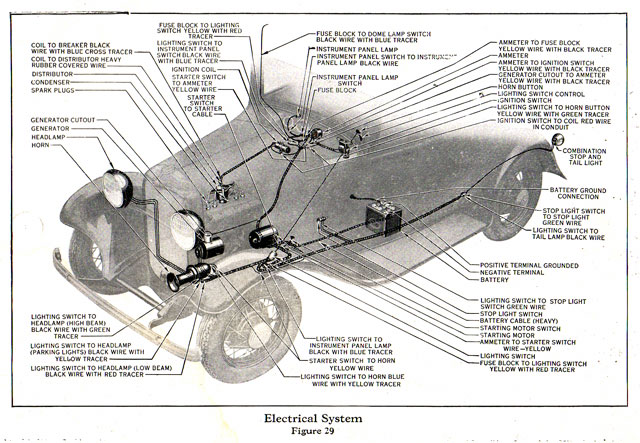

Late 1932 Model B wiring diagram after the fuse was added to the lighting circuit. Power was supplied from the ammeter.
Click images to enlarge!
